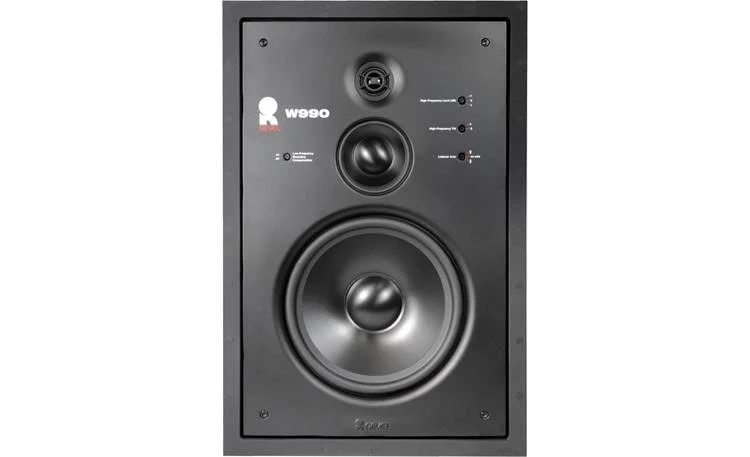

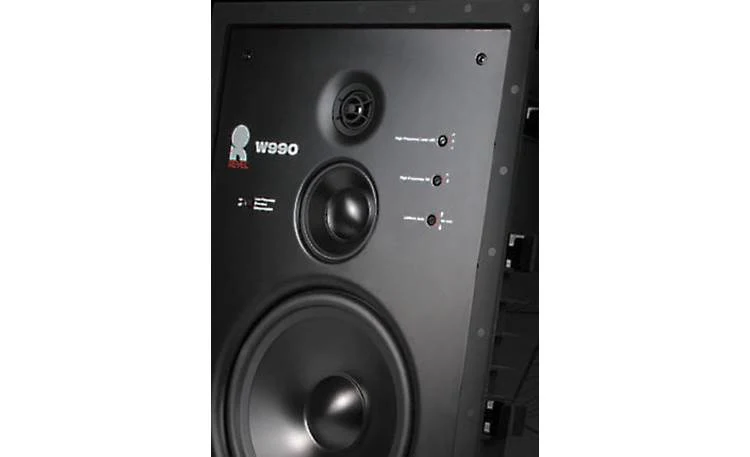

Revel W990 3-way in-wall speaker - W990
9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
- 1" aluminum dome high-output tweeter with waveguide
- HF level & tilt controls
- LF boundary compensation, & listener axis controls
- Advanced high-order crossover network
- Cast aluminum baffle with multi-point spring loaded clamping mechanism
- Mounting depth: 3.7" (9.4 cm)
- Weight: 17.0 lb (7.7 kg) / Shipping weight: 19.4 lb (8.8 kg)
- Cutout dimensions (H x W): 19.1" x 12.5" (48.6 cm x 31.8 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 20.6" x 13.9" (52.3 cm x 35.3 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 200 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 32Hz-28kHz; -10dB from 23-35kHz
- 1" aluminum dome high-output tweeter with waveguide
- HF level & tilt controls
- LF boundary compensation, & listener axis controls
- Advanced high-order crossover network
- Cast aluminum baffle with multi-point spring loaded clamping mechanism
- Mounting depth: 3.7" (9.4 cm)
- Weight: 17.0 lb (7.7 kg) / Shipping weight: 19.4 lb (8.8 kg)
- Cutout dimensions (H x W): 19.1" x 12.5" (48.6 cm x 31.8 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 20.6" x 13.9" (52.3 cm x 35.3 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 200 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 32Hz-28kHz; -10dB from 23-35kHz
9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
- 1" aluminum dome high-output tweeter with waveguide
- HF level & tilt controls
- LF boundary compensation, & listener axis controls
- Advanced high-order crossover network
- Cast aluminum baffle with multi-point spring loaded clamping mechanism
- Mounting depth: 3.7" (9.4 cm)
- Weight: 17.0 lb (7.7 kg) / Shipping weight: 19.4 lb (8.8 kg)
- Cutout dimensions (H x W): 19.1" x 12.5" (48.6 cm x 31.8 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 20.6" x 13.9" (52.3 cm x 35.3 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 200 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 32Hz-28kHz; -10dB from 23-35kHz
- 1" aluminum dome high-output tweeter with waveguide
- HF level & tilt controls
- LF boundary compensation, & listener axis controls
- Advanced high-order crossover network
- Cast aluminum baffle with multi-point spring loaded clamping mechanism
- Mounting depth: 3.7" (9.4 cm)
- Weight: 17.0 lb (7.7 kg) / Shipping weight: 19.4 lb (8.8 kg)
- Cutout dimensions (H x W): 19.1" x 12.5" (48.6 cm x 31.8 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 20.6" x 13.9" (52.3 cm x 35.3 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 200 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 32Hz-28kHz; -10dB from 23-35kHz
$577.50
Original: $1,925.00
-70%Revel W990 3-way in-wall speaker - W990—
$1,925.00
$577.50Description
