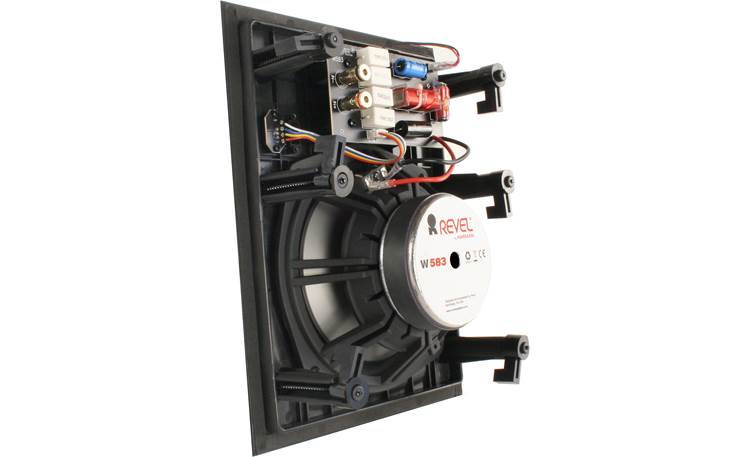

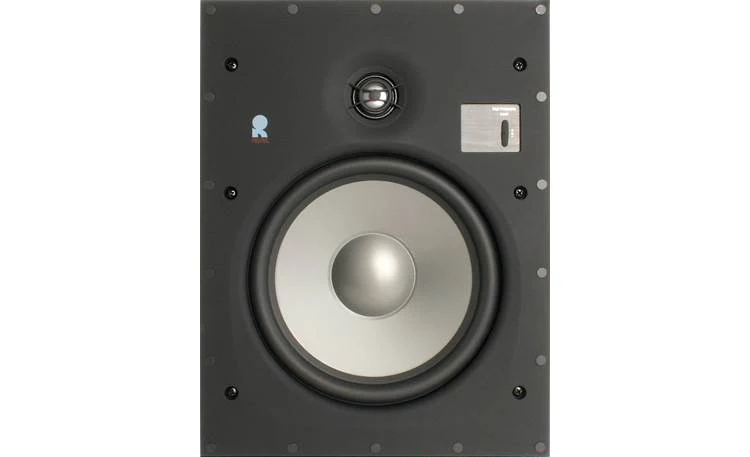

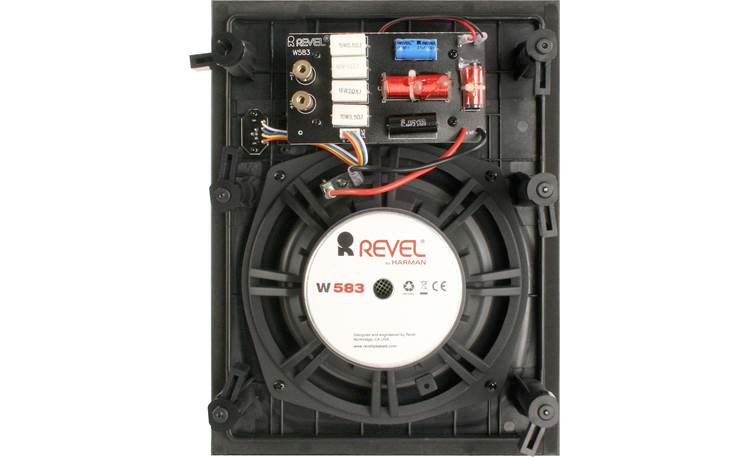

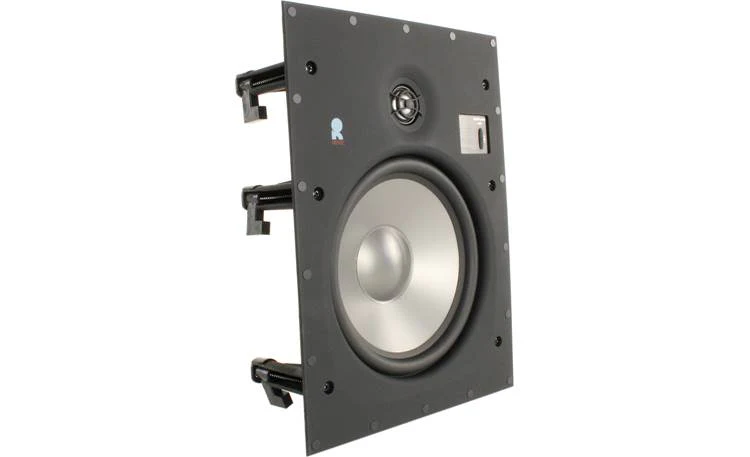

Revel W583 In-wall speaker - W583
8" Micro-Ceramic Composite (MCC) Cone, Cast- Aluminum Frame Woofer
- 1" aluminum dome swiveling tweeter with waveguide
- 3-position HF level control
- Mounting depth: 3.8" (9.6 cm)
- Weight: 6.4 lb (2.9 kg) / Shipping weight: 7.7 lb (3.5 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 135 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 40Hz-25kHz; -10dB from 30-30kHz
- 1" aluminum dome swiveling tweeter with waveguide
- 3-position HF level control
- Mounting depth: 3.8" (9.6 cm)
- Weight: 6.4 lb (2.9 kg) / Shipping weight: 7.7 lb (3.5 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 135 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 40Hz-25kHz; -10dB from 30-30kHz
8" Micro-Ceramic Composite (MCC) Cone, Cast- Aluminum Frame Woofer
- 1" aluminum dome swiveling tweeter with waveguide
- 3-position HF level control
- Mounting depth: 3.8" (9.6 cm)
- Weight: 6.4 lb (2.9 kg) / Shipping weight: 7.7 lb (3.5 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 135 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 40Hz-25kHz; -10dB from 30-30kHz
- 1" aluminum dome swiveling tweeter with waveguide
- 3-position HF level control
- Mounting depth: 3.8" (9.6 cm)
- Weight: 6.4 lb (2.9 kg) / Shipping weight: 7.7 lb (3.5 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 135 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 40Hz-25kHz; -10dB from 30-30kHz
$148.50
Original: $495.00
-70%Revel W583 In-wall speaker - W583—
$495.00
$148.50Description
8" Micro-Ceramic Composite (MCC) Cone, Cast- Aluminum Frame Woofer
- 1" aluminum dome swiveling tweeter with waveguide
- 3-position HF level control
- Mounting depth: 3.8" (9.6 cm)
- Weight: 6.4 lb (2.9 kg) / Shipping weight: 7.7 lb (3.5 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 135 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 40Hz-25kHz; -10dB from 30-30kHz
- 1" aluminum dome swiveling tweeter with waveguide
- 3-position HF level control
- Mounting depth: 3.8" (9.6 cm)
- Weight: 6.4 lb (2.9 kg) / Shipping weight: 7.7 lb (3.5 kg)
- Cutout dimensions (H x W): 11.9" x 8.9" (30.3 cm x 22.7 cm)
- Includes zero-bezel magnetic grille
- Grille finished dimension (H x W): 12.9" x 9.9" (32.8 cm x 25.2 cm)
- Nominal impedance: 8 ohms
- Recommended amplifier power range: 10- 135 watts
- Sensitivity (2.83V/1m): 89 dB
- Frequency Range -3 dB from 40Hz-25kHz; -10dB from 30-30kHz
